2.1. System Overview

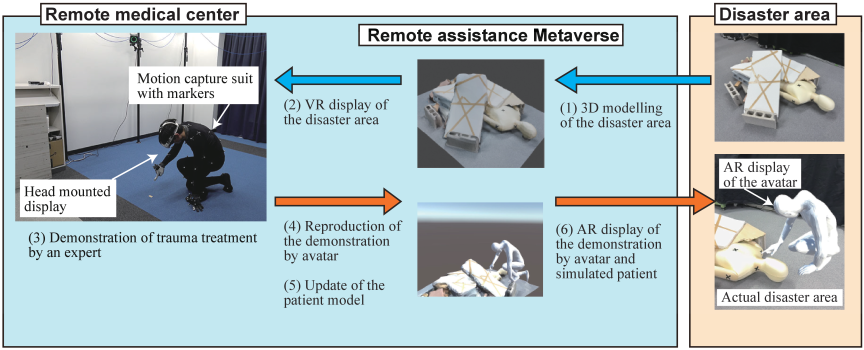

An overview of the proposed remote trauma support system is illustrated in Fig. 1. The system is composed of three main components: disaster area, remote assistance Metaverse environment, and remote medical center. These three locations are connected via a workflow that enables trauma experts to perform procedures in VR and deliver visual guidance back to the disaster site via AR.

At the disaster site, medical personnel use a LiDAR-equipped smartphone to scan the injured victim and the surrounding debris. This process generates a three-dimensional digital twin of the environment (1), which is transmitted to the cloud-based remote assistance Metaverse. In this virtual space, remote trauma experts visualize the reconstructed disaster scene through a VR interface (2). Within the remote medical center, experts perform simulated trauma treatments, such as limb amputation or intravenous infusion, based on their expertise (3). These physical motions are captured using a full-body motion capture system and finger-tracking gloves and then reflected in a digital avatar within the Metaverse (4). The avatar’s actions are subsequently sent back to the disaster area, where they are displayed through an AR interface on mobile devices such as smartphones or tablets (6). This enables on-site personnel to visually follow the expert’s procedural demonstration in spatial alignment with the actual patient.

In this study, the entire system flow, excluding the simulated tissue deformation of the patient model, was implemented and evaluated. Steps (5) and (6) involving dynamic updates to the virtual patient model (e.g., deformation due to surgical manipulation) have not yet been realized. However, future extensions of the system will include physics-based simulation of treatment effects, such as soft-tissue deformation or bleeding, enabling the AR visualization to reflect not only the expert’s motions but also the procedural outcome on the patient in real time.

2.2. 3D Scanning and Data Processing

To construct a digital twin of the disaster site, a LiDAR-equipped Apple iPhone 16 Pro (hereinafter, iPhone) was used for 3D scanning. The scanning process employed Polycam ^c, a commercially available 3D scanning application that utilizes the iPhone’s LiDAR sensor and photogrammetry algorithms to generate high-resolution 3D models of objects and environments. A comparative study reported that Polycam achieves a global accuracy with a standard deviation of 7 cm, with 77% of points within \(\pm\)5 cm. A local mean error of 2.0 cm demonstrates sufficient precision for practical applications in field environments ¹³.

The choice of smartphone-based scanning is driven by practical considerations for disaster response scenarios. Dedicated 3D scanners are often large and expensive, and require specialized operations, making their deployment in the field impractical. In contrast, smartphones are lightweight, portable, and widely available, enabling emergency responders to acquire spatial data rapidly with minimal setup effort.

Kako et al. ¹⁴ analyzed 24 rescue operations conducted by highly skilled rescue teams during the 2016 Kumamoto earthquake. In four of these cases, “Confined Space Medicine,” including treatments such as intravenous therapy performed inside collapsed buildings, was reported. In these instances, after confirming the victim’s condition, an average of 39 minutes (minimum 20 minutes, maximum 60 minutes) elapsed from the request for medical intervention to the start of collaboration at the site.

The proposed system assumes that a 3D model of the victim and surrounding environment is generated at the stage of confirming the victim’s condition. Thus, the interval between the request for medical intervention and the arrival of medical personnel at the site (20 minutes in the shortest case during the Kumamoto earthquake) can be used for LiDAR scanning and model generation. In this experiment, three scans were performed on a simulated 1.5 m \(\times\) 2 m disaster environment, including a mannequin and debris. The average time required for scanning to generate a 3D model was 116 seconds, which was well within the above-mentioned 20-minute timeframe.

The 3D scanning process involves capturing the victim and surrounding debris on-site, generating a model in “.glb” format. Polycam generates surface mesh models either from point clouds acquired by LiDAR or from multiple photographs captured from different viewpoints. The data are then transferred from the iPhone to a PC for further processing. The game engine Unity 2022.3.13f1 ^d was used to reconstruct the virtual disaster environment and enable interactive visualization. Unity provides a flexible platform for integrating 3D models, motion capture data, and VR device interfaces, making it suitable for the development of real-time, immersive support systems. Since Unity does not natively support “.glb” files, the glTFast plugin was incorporated to facilitate the seamless import and rendering of the scanned models.

Although the current workflow requires manual data transfer and model integration, future improvements will focus on automating these processes to further streamline system deployment in real disaster scenarios.

2.3. Remote Expert’s VR Treatment and Motion Capture

A remote trauma expert operates within a virtual reality (VR) environment to interact with the digital twin of the disaster site and perform simulated treatment procedures. In this study, Meta Quest 3 ^e was employed as the head-mounted display (HMD) to provide immersive visualization of the reconstructed disaster environment. The VR system was developed using Unity 2022.3.13f1, incorporating the Meta XR Core package for device integration and the OVRCameraRig prefab for stereoscopic rendering and spatial interactions.

A wireless connection between the HMD and the workstation was established via Air Link, allowing untethered movement during the procedure. Furthermore, OpenXR was used as the runtime interface to maintain compatibility across VR platforms and ensure stable system performance.

To capture the expert’s body movements accurately, an optical motion capture system comprising 12 OptiTrack PrimeX41 ^f cameras was employed. Fifty infrared reflective markers were attached to a motion capture suit worn by the expert, following a standard full-body skeleton configuration. The spatial positions of these markers were tracked in real time using Motive 3.0.3 software, and the resulting motion data were streamed into Unity via the official OptiTrack Unity Plugin. This setup enabled seamless synchronization between the expert’s physical movements and their digital avatar within the VR environment.

MANUS METAGLOVES PRO ^g was used for detailed finger articulation. These gloves use absolute-position fingertip sensors based on quantum-tracking technology to deliver drift-free, millimeter-accurate finger motion capture. A reference sensor at the back of the hand enables accurate pose estimation through sensor fusion. Combined with full-body motion capture, this setup enables the expert to perform realistic treatment procedures within the VR space.

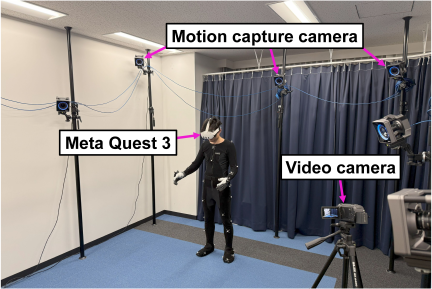

An overview of the VR treatment and motion capture integration of the expert is shown in Fig. 2. This integrated system allows the remote expert to intuitively demonstrate trauma treatment procedures, with their body and hand movements accurately reflected by a digital avatar in the VR environment. The captured interactions form the basis for the procedural guidance provided to on-site medical personnel, which will be visualized and evaluated in subsequent sections.

2.4. Avatar Modeling and Virtual Treatment

To represent the remote expert’s body movements in a virtual environment accurately, a digital avatar was created using a combination of body measurement data, skeletal tracking, and mesh modeling. This avatar served as the medium through which the expert demonstrated trauma treatment procedures within the system.

The avatar was generated using DhaibaWorks ¹⁵, a digital human modeling platform developed by the National Institute of Advanced Industrial Science and Technology (AIST). Body feature points obtained from the motion capture system were used to fit a template model, resulting in a personalized skin mesh that reflects the expert’s actual body proportions. This ensured that the link lengths and overall dimensions of the avatar accurately matched those of the operator.

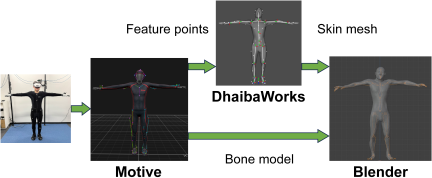

Figure 3 shows the data flow of the avatar-creation process. Skeletal data were exported from Motive 3.0.3 in “FBX” format, capturing the joint hierarchy and motion information. The exported skeletal model and skin mesh generated by DhaibaWorks were then imported into Blender ^h, which is a 3D computer graphics software package. In Blender, rigging and bone alignment adjustments were performed to ensure consistency between the captured motion data and avatar movement. The finalized avatar model was subsequently imported into Unity, where it was linked to real-time motion data streamed from the motion capture system.

Within the virtual environment, the expert’s avatar was visualized from multiple perspectives to support different procedural needs. A first-person view (FPV) was provided to the expert through Meta Quest 3, which enabled immersive and intuitive interaction with the virtual disaster environment. Additionally, a third-person view (TPV) was implemented within Unity for external observations and system verification.

For documentation and analysis, the system’s output was recorded through three channels:

1. (a)

   External video footage recorded using a video camera observing the expert’s physical movements during treatments.

2. (b)

   TPV captured within the Unity environment.

3. (c)

   FPV rendered in Unity and displayed via the HMD.

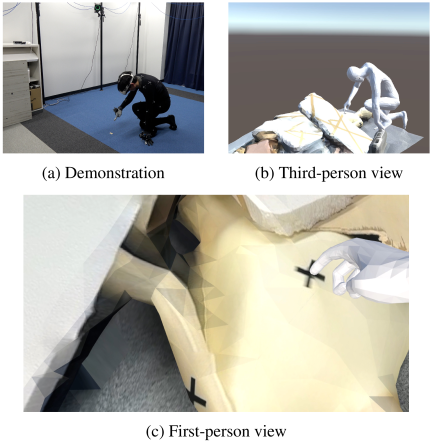

An example of these visual perspectives is presented in Fig. 4.

2.5. AR-Based Result Display

An AR visualization system was developed to deliver procedural guidance to on-site medical personnel intuitively. By superimposing the expert’s procedural demonstration onto a real-world environment, the system enabled non-specialist medical personnel to follow trauma treatments with spatial and contextual clarity.

AR visualization was implemented using Unity, integrating AR Foundation for cross-platform AR development and Immersal SDK for spatial mapping and localization.

First, the simulated disaster environment (mannequin and debris) was scanned using Polycam to generate a high-resolution 3D model. The data were uploaded to the Immersal ⁱ server to create a feature point map and the corresponding 3D spatial environment. Immersal’s visual positioning system enables the localization of AR content by matching real-world camera views to a pre-scanned feature point map.

Within Unity, the expert’s avatar, animated based on recorded procedural demonstrations, was integrated into the AR scene. This allowed disaster-site personnel to view the expert’s trauma treatment in situ, overlaid on the physical environment, using a smartphone or tablet. For deployment, the AR application was built using Xcode and installed on an iOS device.

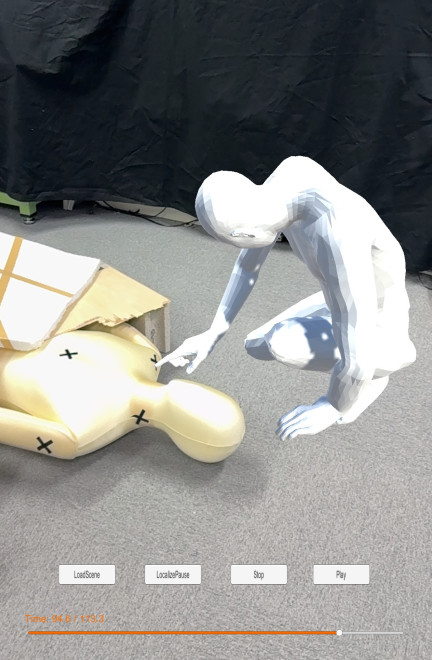

An example of the AR visualization is shown in Fig. 5. To enhance usability, basic playback controls, such as play, pause, and seek bar functions, were implemented within the AR application. These features allowed on-site personnel to review procedural demonstrations at their own pace, facilitating real-time procedural guidance and post-event reviews for training purposes.

By employing AR to display the results, the system bridged the gap between remote expertise and on-site applications, providing a practical and accessible method for delivering procedural guidance in disaster scenarios.

3.1. Experimental Setup

The purpose of this experiment was to verify the practical feasibility of the proposed remote support system in terms of three key aspects:

1. (1)

   Whether scanned disaster environments can be accurately visualized within a VR space.

2. (2)

   Whether a motion-captured avatar can interact with the virtual environment.

3. (3)

   Whether the results of such interactions can be displayed and spatially evaluated through AR.

This experiment did not aim to reproduce an actual trauma treatment, but rather to test the technical performance of the system in simulating task interactions and presenting positionally accurate results. The experiment was conducted by the author himself.

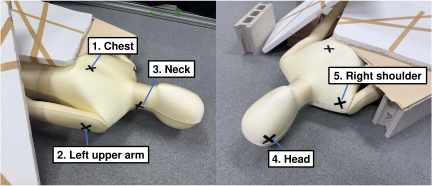

A mannequin representing a disaster victim was used as the procedural target. Five cross-shaped markers were affixed to critical anatomical locations such as the head, neck, and chest using black vinyl tape (each cross measured approximately 10 mm \(\times\) 50 mm). All markers are shown in Fig. 6. Wooden planks and polystyrene blocks were arranged around the mannequin to simulate collapsed debris. To enhance visual feature detection during scanning and AR localization, a patterned adhesive tape was added to plain polystyrene surfaces in our experimental setup. In practical disaster scenes, however, such auxiliary textures are typically unnecessary; victims’ clothing or hair and debris materials (e.g., wood grains in lumber and cracks in concrete) can provide natural features for both 3D scanning and AR localization.

The entire environment was scanned using a LiDAR-equipped iPhone 16 Pro with the Polycam application. The resulting 3D model was imported into Unity to construct the VR environment. The author, acting as the remote operator, wore a motion capture suit with 50 infrared reflective markers, MANUS METAGLOVES PRO for finger tracking, and a Meta Quest 3 head-mounted display. The task was to align the avatar’s right index fingertip with each of the five target markers.

Each target was touched three times consecutively, and this five-point sequence was repeated in two full sets. The entire session was then repeated, resulting in 60 fingertip contacts.

3.2. Positional Accuracy Assessment

To evaluate the spatial precision of AR-based visualization, a photogrammetry-assisted measurement method was employed using RealityCapture ^j, a commercial software specialized in photogrammetric 3D reconstruction. Initial attempts to measure the error by capturing videos focused on the AR avatar’s fingertip proved unreliable; when only a narrow area around the fingertip was recorded, the number of visible feature points was insufficient for accurate 3D reconstruction, causing misalignment and model fragmentation. In addition, when the virtual fingertip was visually embedded within the mannequin model, RealityCapture failed to reconstruct the penetration depth, making it impossible to accurately measure the positional error. To overcome these limitations, the final approach involved aligning the incomplete 3D model of the AR avatar generated by photogrammetry with a fully accurate avatar model exported from Unity, thereby enabling precise identification of the fingertip position.

Several enhancements were applied to the AR avatar and recording setup to support this process and improve the quality of the photogrammetric reconstruction. During AR playback, the avatar was overlaid onto the real-world scene using a smartphone. To increase the number of identifiable features in the AR projection, a randomized black-and-white texture was applied to the avatar’s surface. Additionally, two circular reference markers were placed beside the debris 20 cm apart, allowing scale calibration within RealityCapture.

The videos were recorded while moving around the AR avatar for one minute to ensure that various angles were captured. The video was then decomposed into 180 frames (one every 20 frames), and the resulting images were input into RealityCapture to generate a 3D point-cloud model of the avatar and surrounding debris. The reconstructed model exhibited sufficient quality for the debris and torso areas of the avatar, although parts such as the arms and fingers were occasionally blurred or duplicated because of motion artifacts.

To obtain a clean reference model for the avatar, Unity was used to export the static mesh of the avatar in the exact pose corresponding to each fingertip contact frame. To assist with precise fingertip identification, a 5 mm diameter virtual sphere was placed at the tip of the avatar’s right index finger in Unity before export. The avatar, frozen in the same pose used during AR playback, was then exported from Unity as an .obj file. Both this Unity-generated model and the RealityCapture model were imported into CloudCompare, an open-source software for 3D point clouds and mesh processing. Using this software, eight corresponding landmarks (head, upper back \(\times\)2, right arm \(\times\)2, waist, left arm, and leg) were manually selected for rigid alignment.

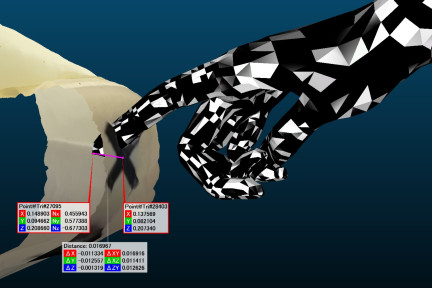

Once aligned, the 3D distance between the Unity avatar’s fingertip and the center of each cross-shaped physical marker was measured using CloudCompare. The results are presented in Fig. 7. Five markers were analyzed, each representing a unique anatomical site (e.g., heart, neck, upper limbs, or head), as shown in Table 1. In all five cases, the avatar’s fingertip was visually embedded within the physical marker, indicating a consistent inward displacement of the virtual model relative to the actual contact surface. Fig. 8 shows the distribution of the distance measurements across all the markers. The average positional error across all five points was 27.0 mm, with a standard deviation of 7.0 mm, indicating a moderate variation among the measurements. This level of accuracy suggests that the AR system achieves sufficient alignment precision to visually communicate procedural intent to on-site personnel.

3.3. Limitations

Several limitations of the current system were observed during the experimental sessions.

• Lack of haptic feedback: Because the system provides no tactile sensation, the avatar’s fingertips sometimes visually penetrated the target surface, particularly during subtle contact attempts.

• Depth perception challenges: Depth perception occasionally required minor head movements to confirm alignment, but this had minimal impact on task performance.

• Manual origin alignment: The coordinate origin of the VR scene was determined by the startup pose of Meta Quest 3. This required the operator to physically adjust their position before launching the application to ensure that the virtual victim aligned reasonably well with their intended location.

Although these limitations did not significantly hinder the experimental treatment, they represent areas for improvement in future iterations of the system.

3.4. Technical Contribution

The proposed remote support system offers several technical advantages for field-deployable medical assistance. First, the system architecture enables procedural demonstration and guidance without relying on high-cost or large-scale specialized equipment at the disaster site. By leveraging commonly available consumer devices such as LiDAR-equipped smartphones for 3D scanning and mobile AR-capable tablets for visualization, the system can be rapidly deployed in resource-constrained environments. This design choice enhances practical applicability, as many emergency responders may already possess compatible hardware.

Second, the system incorporates a digital twin approach that allows trauma experts to interact with a three-dimensional reconstruction of a disaster environment through virtual reality. The motion of the expert, captured through optical tracking and finger-sensor gloves, is synchronized with a virtual avatar, enabling an intuitive procedural simulation. This information is then relayed to on-site personnel via augmented reality, to provide spatially aligned visual guidance.

To assess the accuracy of this workflow, a photogrammetry-based evaluation methodology was introduced using RealityCapture. This method enabled numerical measurement of the positional misalignment between the AR-displayed avatar and the physical environment by reconstructing a 3D model from images taken during AR playback. By comparing the position of the avatar’s fingertip and the center of the physical markers in the reconstructed 3D space, the system allowed for objective, three-dimensional error quantification. In this study, the average positional error for the five cross markers and the fingertip was found to be 27.0 mm, demonstrating the feasibility of this approach for evaluating AR spatial fidelity.

4.1. System Overview

Acquiring trauma surgery skills requires a high level of technical proficiency, which is often difficult to obtain through conventional educational methods such as e-learning or cadaver-based simulations. Moreover, these methods are limited by cost, accessibility, and regulatory constraints.

To address these issues, this study developed a trauma education system that captures expert treatments using a motion capture system and reconstructs them as a digital twin in the Metaverse. This system enables learners to observe and review surgical techniques from arbitrary viewpoints, thereby facilitating self-paced, on-demand training.

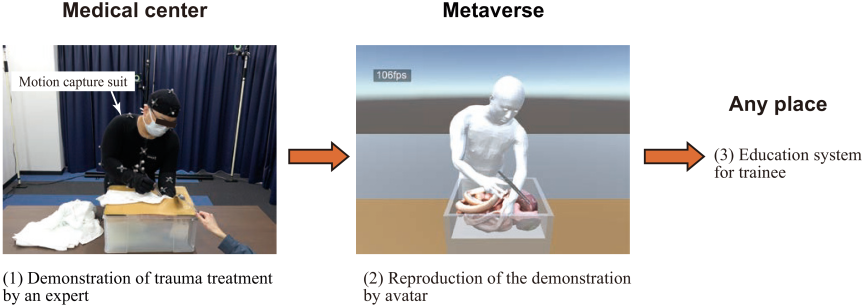

An overview of the system is shown in Fig. 9. It combines full-body motion capture, instrument tracking, and a detailed avatar to reproduce procedural movements. In addition, soft-tissue deformation is simulated using position-based dynamics (PBD) ¹⁶ to improve the realism of the surgical environment. PBD is a simulation method that updates the positions of particles directly based on constraints rather than calculating forces and accelerations. It is widely used in computer graphics for real-time simulations of soft bodies, clothing, and character physics, because it is stable, fast, and easy to control.

4.2. Expert Demonstration of Trauma Treatments

The experimental setup for the medical education system was partially shared with the remote support system described in Section 2.3, but there were several important differences. The camera used was an optical motion capture system composed of 12 OptiTrack Prime41 cameras, and StretchSense Pro Fidelity Gloves were employed for finger tracking. Unlike the remote support system, this experiment did not involve a HMD because the treatments were performed on a physical trauma simulator visible to the expert.

Unlike the remote support system, the trauma education system was developed using data recorded by a trauma surgeon with specialized experience. An experienced trauma surgeon performed several trauma treatments using surgical instruments and a physical simulator. To enable accurate motion capture, forceps, scalpels, and an electric bone saw were equipped with custom-designed 3D-printed attachments for reflective markers, as shown in Fig. 10. This setup ensured high tracking precision for the instruments.

The recorded trauma treatments included:

• Amputation

• Five-point gauze packing

• Gauze packing for liver injury

• Pringle maneuver

• Suture repair of liver injury

• Temporary abdominal closure

• Gauze removal

Amputation was assumed to be performed in disaster settings, whereas other treatments were intended to occur at medical relief stations or disaster base hospitals after patient transport. The liver trauma surgery simulator developed by Tojima et al. was used for five-point gauze packing, gauze removal, the Pringle maneuver, and temporary abdominal closure. Training using this simulator was demonstrated to be effective in clinical practice ¹⁷.

To enhance the visual and spatial fidelity of the virtual training environment, several physical components were converted into 3D models using Scaniverse ^k, a LiDAR-based 3D scanning application. These components included a liver trauma surgery simulator, a limb model for amputation training, and an electric bone saw. The resulting 3D models were imported into Unity for integration with the motion capture data and procedural animations.

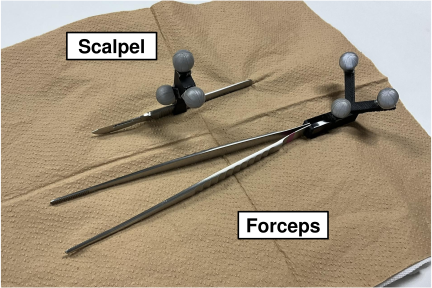

Reflective metal instruments, such as scalpels and forceps, could not be scanned accurately. To address this issue, a manual modeling method was applied. Each tool was photographed from front and top views. The images were binarized and solidified in Blender, rotated orthogonally, and merged to reconstruct the 3D shape. Boolean operations were then used to generate a final detailed model suitable for simulation.

Currently, reconstructed treatments are visualized and played back within the Unity environment. Viewpoint manipulation is performed manually using mouse controls. Although not yet built as a standalone application, the system is readily portable to iOS, Android, and VR platforms such as Meta Quest, enabling deployment on widely available devices. This flexibility allows the system to be used for clinical training in various environments without requiring specialized hardware.

4.3. Enhancing Realism in Treatment Simulation

To replicate surgical treatments realistically in a virtual environment, the recorded motion data of the expert were applied to an avatar. The avatar was constructed using the same method as described in Section 2.4, utilizing DhaibaWorks to generate a personalized body mesh based on full-body motion capture data and integrating it with skeletal data in Blender.

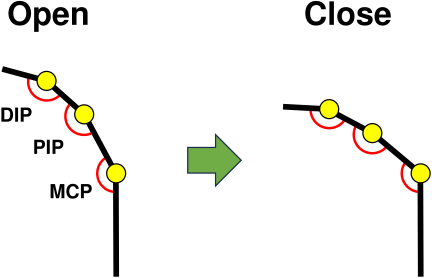

In addition, to reproduce the opening and closing motion of forceps, the bending angles of the fingers measured by a sensor glove were utilized. Specifically, the angles of the first (DIP), second (PIP), and third (MCP) joints of the middle finger were analyzed, and an algorithm was implemented to transition to the state when the cumulative angle exceeded a predefined threshold. Fig. 11 illustrates the joint states of the fingers during the forceps operation.

The surgical environment was recreated using Unity, incorporating the physics engine Obi Softbody ^l with PBD for treatments such as gauze packing and gauze removal. PBD is a particle-based physical modeling approach for simulating object deformations. Unlike conventional rigid-body dynamics, PBD applies physical constraints directly, improving computational efficiency. By employing PBD, the system enables the real-time simulation of soft tissue deformations and achieves realistic procedural behavior.

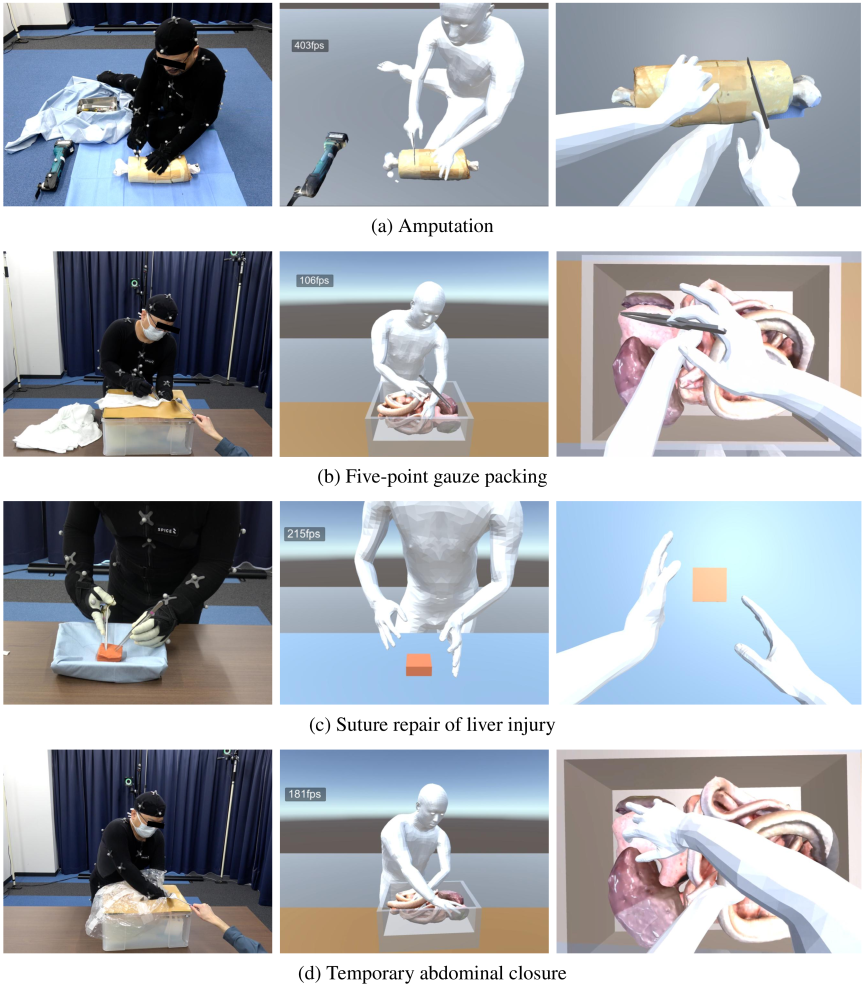

Trauma treatments, including amputation, five-point gauze packing, suture repair of liver injury, and temporary abdominal closure, performed using the system, are shown in Figs. 12(a)–(d), respectively.

By incorporating this system, learners can utilize the digital twin environment to observe surgical techniques in detail, thereby enhancing their learning experience.

4.4. Evaluation of Digital Twin Accuracy

To assess the fidelity of the digital twin environment, we conducted a positional error analysis focusing on the accuracy of tool representation during procedural actions. Specifically, we evaluated the positional accuracy of the virtual forceps tip when contacting predefined markers on the simulator.

During the recording session, circular markers with a diameter of 16 mm were placed in the simulator environment. When the surgeon’s forceps contacted these markers, the corresponding moment in the animation was replayed in Unity, and the 3D distance between the virtual forceps tip and the center of the marker was measured.

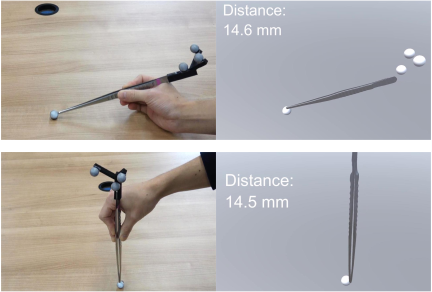

The results of this analysis are presented in Fig. 13. The theoretical minimum distance is 8 mm (the radius of the marker). The measured positional error averaged approximately 7 mm, with most samples falling within a \(\pm\)10 mm range. The error was primarily attributed to marker placement precision, motion capture resolution, and 3D model approximation.

This level of error is acceptable for trauma education. The main goal is to understand procedural flow, spatial awareness, and decision-making rather than surgical micromanipulation. The current system demonstrates sufficient spatial accuracy for its intended educational use, with potential for further refinement through improved tracking hardware or higher-fidelity modeling techniques.

5.1. System-Wide Perspective and Practicality

The core operations at disaster or clinical education sites are designed to run on widely available hardware, such as iPhones, iPads, or commercially available VR headsets. This flexibility enables effective response across various disaster sites nationwide.

For instance, disaster-site personnel can create a 3D scan of the environment using a LiDAR-equipped smartphone. This model can then be shared with remote experts, who interact with the reconstructed VR environment. Although the avatar operation via motion capture is conducted in real time, the scanning, data integration, and AR result visualization are not performed in real time and currently require offline processing.

Similarly, in the trauma education system, expert treatments were digitized using motion capture and sensor gloves and integrated into a virtual scene. The physical interaction is visually realistic and computationally efficient, particularly due to the use of PBD. However, the simulation does not yet support complex tissue behaviors such as cutting or rupture.

5.2. Limitations and Future Work

In the remote support system, key limitations include the lack of haptic feedback, which led to some visual inconsistencies (e.g., fingertip penetrating virtual surfaces), and the need for manual alignment due to the dynamic origin setting of the HMD at application startup. Although these limitations did not critically affect operation, they warrant improvement for broader field deployment.

The AR visualization also depends on environmental feature richness. While techniques such as patterned tape improved localization accuracy in the current experiments, additional methods—such as marker-based registration—should be investigated to further stabilize AR overlays.

Although realistic procedural behaviors have been simulated in the medical education system, the use of PBD limits physical accuracy. Future studies should explore finite element method (FEM)-based deformation models to simulate complex surgical interactions and tissue mechanics more precisely ^18,19. Additionally, although motion and instrument data from a trauma expert were used, formal evaluations with medical trainees have not yet been conducted. Assessing the system’s educational effectiveness using standardized rubrics, such as OSATS ^20,17, remains an important task for future research. Finally, future work will focus on expanding the database of trauma treatments. While this study included a limited number of representative trauma treatments, broader coverage—including various open and minimally invasive techniques—will enable the creation of a comprehensive digital archive for trauma education. This may also be extended to include other domains such as endoscopic or laparoscopic surgery ²¹, contributing to a wider range of surgical training applications.

These findings highlight the system’s feasibility and applicability for field-based trauma support and clinical education, while also indicating clear paths for technical enhancement and validation.
