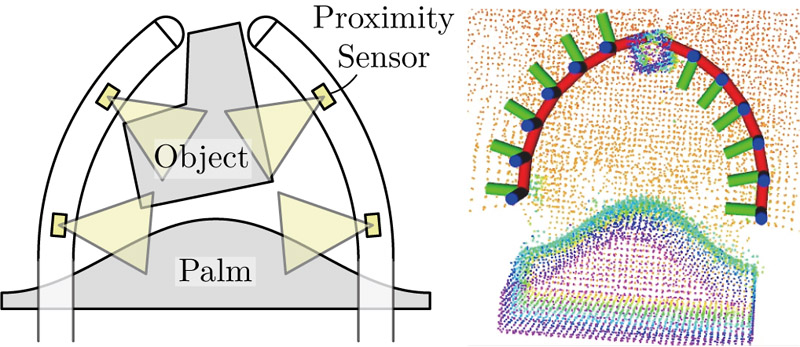

This paper investigates state estimation for continuum robotic fingers in feature-sparse and dynamic in-hand manipulation environments. Continuum fingers, inspired by continuum robots, offer enhanced flexibility and wider reachable workspace compared with conventional rigid-link fingers to enable grasping and manipulation tasks. However, they lack encoder-based joint angle measurements, making it difficult to determine fingertip positions, particularly under external forces during contact. This limitation hinders precision grasping and prevents the full exploitation of their high dexterity. To address this challenge, we developed a simultaneous localization and mapping framework for continuum fingers using proximity sensors. Unlike conventional simultaneous localization and mapping that assumes feature-rich environments, grasping scenarios present feature-sparse conditions with limited environmental information. We propose an estimator that fuses proximity sensing with a constant-curvature kinematic prior by replacing encoder angles with virtual joint angles. The key idea is to leverage the designed in-hand elements, namely opposing fingers and the palm, as stable reference geometry. Simulations demonstrate that the proposed estimator outperforms a kinematics-only baseline by suppressing bias and reducing position error. Three-dimensional contoured palms enhance observability, with a composite wavy palm yielding the smallest errors without temporal drift. These findings indicate that the designed in-hand geometry combined with temporal map management enables effective state estimation for continuum fingers in feature-sparse and dynamic grasping scenarios.

1. [1] M. Suomalainen, Y. Karayiannidis, and V. Kyrki, “A survey of robot manipulation in contact,” Robot. Auton. Syst., Vol.156, Article No.104224, 2022. https://doi.org/10.1016/j.robot.2022.104224
2. [2] S. Suresh, H. Qi, T. Wu, T. Fan, L. Pineda, M. Lambeta, J. Malik, M. Kalakrishnan, R. Calandra, M. Kaess, J. Ortiz, and M. Mukadam, “NeuralFeels with neural fields: Visuotactile perception for in-hand manipulation,” Sci. Robot., Vol.9, No.96, Article No.eadl0628, 2024. https://doi.org/10.1126/scirobotics.adl0628
3. [3] W. Zhao, Y. Zhang, and N. Wang, “Soft Robotics: Research, Challenges, and Prospects,” J. Robot. Mechatron., Vol.33, No.1, pp. 45-68, 2021. https://doi.org/10.20965/jrm.2021.p0045
4. [4] D. Rus and M. T. Tolley, “Design, fabrication and control of soft robots,” Nature, Vol.521, No.7553, pp. 467-475, 2015. https://doi.org/10.1038/nature14543
5. [5] J. Burgner-Kahrs, D. C. Rucker, and H. Choset, “Continuum Robots for Medical Applications: A Survey,” IEEE Trans. Robot., Vol.31, No.6, pp. 1261-1280, 2015. https://doi.org/10.1109/tro.2015.2489500
6. [6] J. M. Ferguson, D. C. Rucker, and R. J. Webster, “Unified Shape and External Load State Estimation for Continuum Robots,” IEEE Trans. Robot., Vol.40, pp. 1813-1827, 2024. https://doi.org/10.1109/tro.2024.3360950
7. [7] Z. Wang, G. Wang, X. Chen, and N. M. Freris, “Kinematic Modeling and Control of a Soft Robotic Arm with Non-constant Curvature Deformation,” Proc. IEEE Int. Conf. Robot. Autom. (ICRA), pp. 12749-12755, 2024. https://doi.org/10.1109/icra57147.2024.10611049
8. [8] S. E. Navarro, S. Muhlbacher-Karrer, H. Alagi, H. Zangl, K. Koyama, B. Hein, C. Duriez, and J. R. Smith, “Proximity Perception in Human-Centered Robotics: A Survey on Sensing Systems and Applications,” IEEE Trans. Robot., Vol.38, No.3, pp. 1599-1620, 2022. https://doi.org/10.1109/tro.2021.3111786
9. [9] H. Arita, “A fast optical proximity sensor skin that contains an analog computing circuit and can cover an entire link,” Adv. Robot., Vol.37, No.17, pp. 1083-1099, 2023. https://doi.org/10.1080/01691864.2023.2239320
10. [10] S. J. Moon, J. Kim, H. Yim, Y. Kim, and H. R. Choi, “Real-Time Obstacle Avoidance Using Dual-Type Proximity Sensor for Safe Human-Robot Interaction,” IEEE Robot. Autom. Lett., Vol.6, No.4, pp. 8021-8028, 2021. https://doi.org/10.1109/lra.2021.3102318
11. [11] Y. Ding, F. Wilhelm, L. Faulhammer, and U. Thomas, “With Proximity Servoing towards Safe Human-Robot-Interaction,” Proc. IEEE/RSJ Int. Conf. Intell. Robots Syst. (IROS), pp. 4907-4912, 2019. https://doi.org/10.1109/iros40897.2019.8968438
12. [12] S. Suyama, M. Nakajima, H. Arita, and M. Tanaka, “Control of a Snake Robot With Proximity Sensors to Adapt for Two Variable Planes,” IEEE Access, Vol.12, pp. 46864-46880, 2024. https://doi.org/10.1109/access.2024.3382205
13. [13] X. Yue, Y. Zhang, J. Chen, J. Chen, X. Zhou, and M. He, “LiDAR-based SLAM for robotic mapping: state of the art and new frontiers,” Ind. Robot., Vol.51, No.2, pp. 196-205, 2024. https://doi.org/10.1108/ir-09-2023-0225
14. [14] M. Klingensmith, S. S. Sirinivasa, and M. Kaess, “Articulated Robot Motion for Simultaneous Localization and Mapping (ARM-SLAM),” IEEE Robot. Autom. Lett., Vol.1, No.2, pp. 1156-1163, 2016. https://doi.org/10.1109/lra.2016.2518242
15. [15] C. Sorensen, P. Hyatt, M. Ricks, S. Nielsen, and M. D. Killpack, “Soft Robot Configuration Estimation and Control Using Simultaneous Localization and Mapping,” Proc. IEEE/RSJ Int. Conf. Intell. Robots Syst. (IROS), pp. 616-623, 2021. https://doi.org/10.1109/iros51168.2021.9635896
16. [16] K. Iwao, H. Arita, and K. Tahara, “State Estimation and Environment Recognition for Articulated Structures via Proximity Sensors Distributed over the Whole Body,” IEEE Robot. Autom. Lett., Vol.10, No.3, pp. 3030-3037, 2025. https://doi.org/10.1109/lra.2025.3539117
17. [17] M. Morita, H. Arita, A. Kanada, and K. Tahara, “Multi-fingered Robotic Hand with Shape Flexibility for Expanding the Feasible Range of In-hand Manipulation,” Proc. IEEE/SICE Int. Symp. Syst. Integr. (SII), pp. 216-221, 2025. https://doi.org/10.1109/SII59315.2025.10870904
18. [18] M. Morita, K. Iwao, H. Arita, and K. Tahara, “State Estimation of a Shape-flexible Multi-fingered Hand Using Multiple ToF Sensors,” Proc. SICE Syst. Integr. Div. Annu. Conf. (SI2024), pp. 1399-1400, 2024 (in Japanese).
19. [19] M. Morita, H. Arita, K. Nakashima, and K. Tahara, “State Estimation of a Shape-flexible Multi-fingered Robotic Hand Leveraging Multiple Proximity Sensors Measuring an Ambient Environment including the Self-body and a Constant Curvature Model,” Proc. IEEE/SICE Int. Symp. Syst. Integr. (SII), 2026. https://doi.org/10.1109/SII64115.2026.11404608
20. [20] M. Morita, K. Iwao, H. Arita, K. Nakashima, and K. Tahara, “State Estimation of a Shape-flexible Multi-fingered Robotic Hand Using Multiple Proximity Sensors Measuring an Ambient Environment including the Self-body,” Proc. JSME Robot. Mechatron. Conf. (Robomec), 1P1-L03, 2025 (in Japanese).
21. [21] W. Xu, Y. Cai, D. He, J. Lin, and F. Zhang, “FAST-LIO2: Fast Direct LiDAR-Inertial Odometry,” IEEE Trans. Robot., Vol.38, No.4, pp. 2053-2073, 2022. https://doi.org/10.1109/tro.2022.3141876
22. [22] STMicroelectronics, “Time-of-flight (tof) 8x8 multizone ranging sensor with wide field of view.” https://www.st.com/en/imaging-and-photonics-solutions/vl53l5cx.html [Accessed November 20, 2025].
