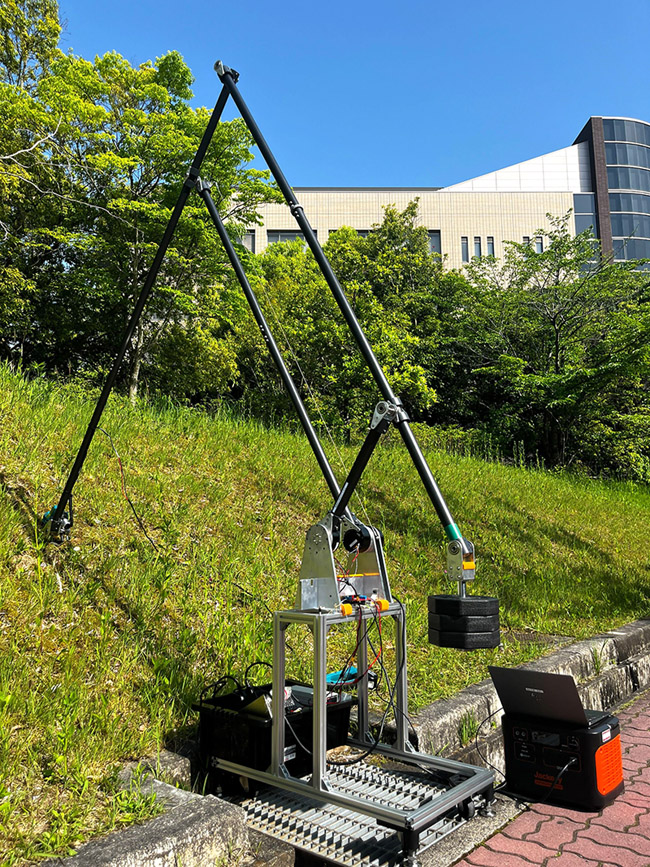

This study proposes a lightweight long-reach outdoor robot arm equipped with highly backdrivable actuators, named “ParaLambda,” for terrain-contact tasks on uneven ground. The robot employs a parallel-link structure and carbon-fiber reinforced polymer links to achieve both long-reach and lightweight construction, while low-gain PD control with quasi-direct-drive actuators provides passive compliance against external forces without requiring additional force/torque sensors. As a representative application, outdoor mowing work in rough terrain is considered. The developed prototype has a maximum reach of 4.15 m and an arm weight of 8.35 kg. To evaluate the feasibility of the proposed concept, preliminary indoor experiments and outdoor grass-cutting experiments were conducted. The experimental results confirmed stable repetitive motion, terrain-contact capability through passive compliance, and practical outdoor mowing operation while maintaining joint torque within the allowable actuator range. These results demonstrate the feasibility of lightweight compliant long-reach manipulators for outdoor terrain-contact applications.

1. [1] M. Takeichi, K. Suzumori, G. Endo, and H. Nabae, “Development of Giacometti Arm with Balloon Body,” IEEE Robotics and Automation Letters, Vol.2, No.2, pp. 951-957, 2017. https://doi.org/10.1109/LRA.2017.2655111
2. [2] G. Endo, A. Horigome, and A. Takata, “Super Dragon: A 10-m-Long-Coupled Tendon-Driven Articulated Manipulator,” IEEE Robotics and Automation Letters, Vol.4, No.2, pp. 934-941, 2019. https://doi.org/10.1109/LRA.2019.2894855
3. [3] A. Takata and G. Endo, “Dynamics-Based Control and Path Planning Method for Long-Reach Coupled Tendon-Driven Manipulator,” J. Robot. Mechatron., Vol.36, No.1, pp. 30-38, 2024. https://doi.org/10.20965/jrm.2024.p0030
4. [4] Y. Yoshimitsu and S. Ikemoto, “Development of Tensegrity Manipulator Driven by 40 Pneumatic Cylinders for Investigating Functionality in Hyper-Redundant Musculoskeletal Systems,” J. Robot. Mechatron., Vol.35, No.5, pp. 1366-1373, 2023. https://doi.org/10.20965/jrm.2023.p1366
5. [5] S. Hirose, T. Ishii, and A. Haishi, “Float Arm V: Hyper-redundant Manipulator with Wire-driven Weight-compensation Mechanism,” Proc. of 2003 IEEE Int. Conf. on Robotics and Automation, pp. 368-373, 2003. https://doi.org/10.1109/ROBOT.2003.1241623
6. [6] M. Freese, S. P. N. Singh, W. Singhose, E. F. Fukushima, and S. Hirose, “Terrain Modeling and Following Using a Compliant Manipulator for Humanitarian Demining Applications,” A. Howard, K. Iagnemma, and A. Kelly (Eds.), “Field and Service Robotics,” pp. 3-12, Springer, 2010. https://doi.org/10.1007/978-3-642-13408-1_1
7. [7] M. Freese, E. F. Fukushima, S. Hirose, and W. Singhose, “Endpoint Vibration Control of a Mobile Mine-Detecting Robotic Manipulator,” Proc. of the American Control Conf., pp. 1724-1729, 2007. https://doi.org/10.1109/ACC.2007.4282908
8. [8] “Yaskawa GP120RL Website.” https://www.yaskawa.eu.com/robotics/robots/handling-mounting/productdetail/product/gp120rl_5936 [Accessed September 30, 2025]
9. [9] “Kawasaki Robotics RS015X Website.” https://kawasakirobotics.com/asia-oceania/products-robots/rs015x/ [Accessed September 30, 2025]
10. [10] “Hibot Float Arm Website.” https://hibot.co.jp/ja/float-arm/ [Accessed September 30, 2025]
11. [11] “Huskvarna Website.” https://www.husqvarna.com/jp/robotic-lawn-mowers/ [Accessed September 30, 2025]
12. [12] “Spider Website.” https://www.spidermower.com/ [Accessed September 30, 2025]
13. [13] “MURAG Website.” https://www.mulag.de/en/roadside-equipment/products/unimog-equipment/front-mower/ [Accessed September 30, 2025]
14. [14] “Husqvarna Zenoah Website.” https://www.zenoah.com/jp/weed-mowers/khm400w/ [Accessed September 30, 2025]
15. [15] “Makita Website.” https://www.makita.co.jp/product/detail/?&model=MUR193D [Accessed September 30, 2025]
