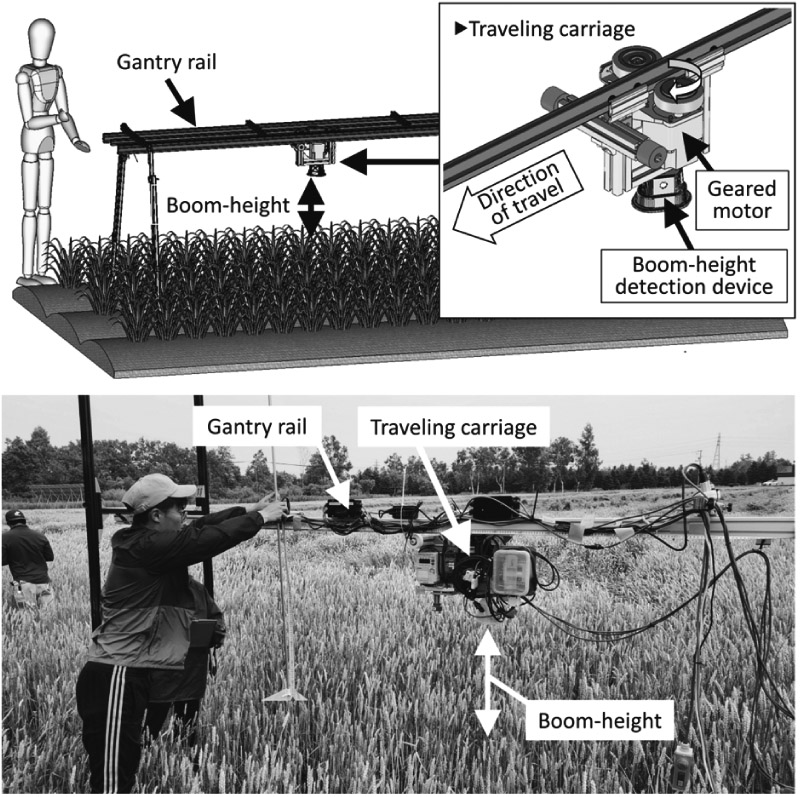

This study developed and experimentally evaluated an automatic boom-height control system for boom sprayers for large-scale field crop farming by integrating a compact position-sensitive detector (PSD)-based boom-height detection device with a hydraulic control mechanism. The detection device, equipped with three PSDs arranged at a 6° outward tilt in a three-dimensional configuration, suppressed optical interference and contributed to system miniaturization. A two-step signal processing algorithm combining minimum-value selection and median filtering enabled stable measurement of crop canopy height, with detection errors within ±5 cm for potato, soybean, and sugar beet. Larger errors (+7.4 cm) were observed for wheat, indicating the need for crop-specific correction. Step response experiments of the hydraulic control system were conducted using a container 65 cm high as a reference object. The results showed rise and fall times of 0.95 and 2.41 s, respectively, demonstrating stable operation without overshoot. These findings highlight both the effectiveness of PSD-based sensing for boom-height detection and the necessity of implementing more sophisticated control strategies to achieve accurate regulation in long, flexible agricultural booms.

1. [1] É. F. Reynaldo, T. M. Machado, L. Taubinger, and D. de Quadros, “Vertical and horizontal oscillation of three models of self-propelled boom sprayers,” Revista Brasileira de Engenharia Agrícola e Ambiental, Vol.20, No.10, pp. 941-945, 2016. https://doi.org/10.1590/1807-1929/agriambi.v20n10p941-945
2. [2] Ministry of Agriculture, Forestry and Fisheries (MAFF), “MAFF publishes 2021 status of Japan Green Food System Strategy targets,” 2023.
3. [3] A. Nordby and R. Skuterud, “The effects of boom height, working pressure and wind speed on spray drift,” Weed Research, Vol.14, No.6, pp. 385-395, 1974. https://doi.org/10.1111/j.1365-3180.1974.tb01080.x
4. [4] D. Nuyttens, I. K. A. Zwertvaegher, and D. Dekeyser, “Spray drift assessment of different application techniques using a drift test bench and comparison with other assessment methods,” Biosystems Engineering, Vol.154, pp. 14-24, 2017. https://doi.org/10.1016/j.biosystemseng.2016.10.010
5. [5] X. Pan, S. Yang, Y. Gao, Z. Wang, C. Zhai, and W. Qiu, “Evaluation of spray drift from an electric boom sprayer: Impact of boom height and nozzle type,” Agronomy, Vol.15, No.1, Article No.160, 2025. https://doi.org/10.3390/agronomy15010160
6. [6] H. J. Holterman, “Modelling spray drift from boom sprayers,” Computers and Electronics in Agriculture, Vol.19, No.1, pp. 1-22, 1998. https://doi.org/10.1016/S0168-1699(97)00018-5
7. [7] M. D. Fuchs, S. Gebler, and A. Lorke, “The droplet and atmospheric dispersion drift (DAD-drift) model – A modular approach for estimating spray drift at the landscape scale,” Environmental Research, Vol.271, Article No.121104, 2025. https://doi.org/10.1016/j.envres.2025.121104
8. [8] A. Herbst, H.-J. Osteroth, and H. Stendel, “A novel method for testing automatic systems for controlling the spray boom height,” Biosystems Engineering, Vol.174, pp. 115-125, 2018. https://doi.org/10.1016/j.biosystemseng.2018.07.011
9. [9] J. Li, Z. Nie, Y. Chen, D. Ge, and M. Li, “Development of boom posture adjustment and control system for wide spray boom,” Agriculture, Vol.13, No.11, Article No.2162, 2023. https://doi.org/10.3390/agriculture13112162
10. [10] T. A. Burgers, J. D. Gaard, and B. J. Hyronimus, “Comparison of Three Commercial Automatic Boom Height Systems for Agricultural Sprayers,” Applied Engineering in Agriculture, Vol.37, No.2, pp. 287-298, 2021. https://doi.org/10.13031/AEA.14346
11. [11] X. Zhao, C. Zhai, S. Wang, H. Dou, S. Yang, X. Wang, and L. Chen, “Sprayer boom height measurement in wheat field using ultrasonic sensor: An exploratory study,” Frontiers in Plant Science, Vol.13, Article No.1008122, 2022. https://doi.org/10.3389/fpls.2022.1008122
12. [12] H. Y. Jeon, H. Zhu, R. Derksen, E. Ozkan, and C. Krause, “Evaluation of ultrasonic sensor for variable-rate spray applications,” Computers and Electronics in Agriculture, Vol.79, No.1, pp. 213-221, 2011. https://doi.org/10.1016/j.compag.2011.08.005
13. [13] L. Liu, R. Guo, and J. Wu, “Design of a fast echo matching algorithm to reduce crosstalk with Doppler shifts in ultrasonic ranging,” Measurement Science and Technology, Vol.28, Article No.025103, 2017. https://doi.org/10.1088/1361-6501/28/2/025103
14. [14] A. Rudyk, A. Semenov, S. Baraban et al., “Influence of environmental factors on the accuracy of the ultrasonic rangefinder in a mobile robotic technical vision system,” Electronics, Vol.14, No.7, Article No.1393, 2025. https://doi.org/10.3390/electronics14071393
15. [15] H. Dou, “Low-cost LiDAR-based spray boom height measurement system,” Sensors, Vol.21, No.6, Article No.1954, 2021. https://doi.org/10.3390/s21061954
16. [16] Y. Do and J. Kim, “Infrared range sensor array for 3D sensing in robotic applications,” Int. J. of Advanced Robotic Systems, Vol.10, No.4, Article No.193, 2013. https://doi.org/10.5772/55896
17. [17] P.-L. Kuo, C.-H. Wang, H.-J. Chou, and J.-S. Liu, “A real-time hydrodynamic-based obstacle avoidance system for non-holonomic mobile robots with curvature constraints,” Applied Sciences, Vol.8, No.11, Article No.2144, 2018. https://doi.org/10.3390/app8112144
18. [18] A. Fujimoto, T. Satow, T. Makino, and K. Funabiki, “Development of boom height measurement module with PSD sensor,” Proc. of the 9th Int. Symp. on Machinery and Mechatronics for Agricultural and Biosystems Engineering, pp. 307-312, 2018.
19. [19] A. Fujimoto, T. Satow, and K. Funabiki, “Development of a boom height measurement device with position-sensitive detectors,” J. of the Japanese Society of Agricultural Machinery and Food Engineers, Vol.84, No.5, pp. 332-338, 2022 (in Japanese).
20. [20] A. Fujimoto, T. Satow, and M. Akimoto, “Development of a boom-height detection device using position-sensitive detectors – Evaluation of detection accuracy for four major field crops in Hokkaido –,” J. of the Japanese Society of Agricultural Machinery and Food Engineers, Vol.87, No.4, pp. 378-385, 2025 (in Japanese).
