MRI Image Segmentation Algorithm for Temporomandibular Joint Discs and Condyles Based on the Improved nnU-Net Framework

Rufu Lin*1 ORCID Icon, Qiang Sun*2,† ORCID Icon, Yan Chen*3 ORCID Icon, Zhaohui Zhang*4 ORCID Icon, Xiaoyan Zhao*4 ORCID Icon, and Qingfeng Wang*1 ORCID Icon

*1Shunde Innovation School, University of Science and Technology Beijing
No.2 Zhihui Road, Shunde District, Foshan 528399, China

*2China-Japan Friendship Hospital Stomatology Center
No.2 Sakura East Street, Chaoyang District, Beijing 100029, China

†Corresponding author

*3School of Optoelectronic Engineering, Changzhou Institute of Technology
No.666 Liaohe Road, Xinbei District, Changzhou 213032, China

*4School of Automation and Electrical Engineering, University of Science and Technology Beijing
No.30 Xueyuan Road, Haidian District, Beijing 100083, China

Received:
March 18, 2026
Accepted:
March 21, 2026
Published:
September 20, 2026
Creative Commons License
Keywords:
temporomandibular joint, magnetic resonance imaging, image segmentation
Abstract

Accurate segmentation of the articular disc from MRI is crucial for diagnosing and treating temporomandibular joint disorders (TMD), but it remains challenging because of the small structure size, blurred boundaries, and class imbalance. This study aims to improve articular disc segmentation accuracy for computer-aided TMD diagnosis. We propose an enhanced nnU-Net-based method with three modifications: (1) fewer downsampling layers to preserve spatial detail, (2) a DynFocus module with channel-and-spatial attention at the bottleneck to enhance disc-background discrimination, and (3) a joint loss combining Dice focal and boundary losses to improve sensitivity and boundary delineation. On 50 temporomandibular joint MRI cases, the proposed method improved disc segmentation Dice from 0.69 to 0.71, maintained condyle Dice at 0.89, and achieved an average Dice of 0.80. These results indicate that the proposed enhancements improve disc segmentation performance while preserving condyle segmentation accuracy, supporting their usefulness for MRI-based TMD assessment.

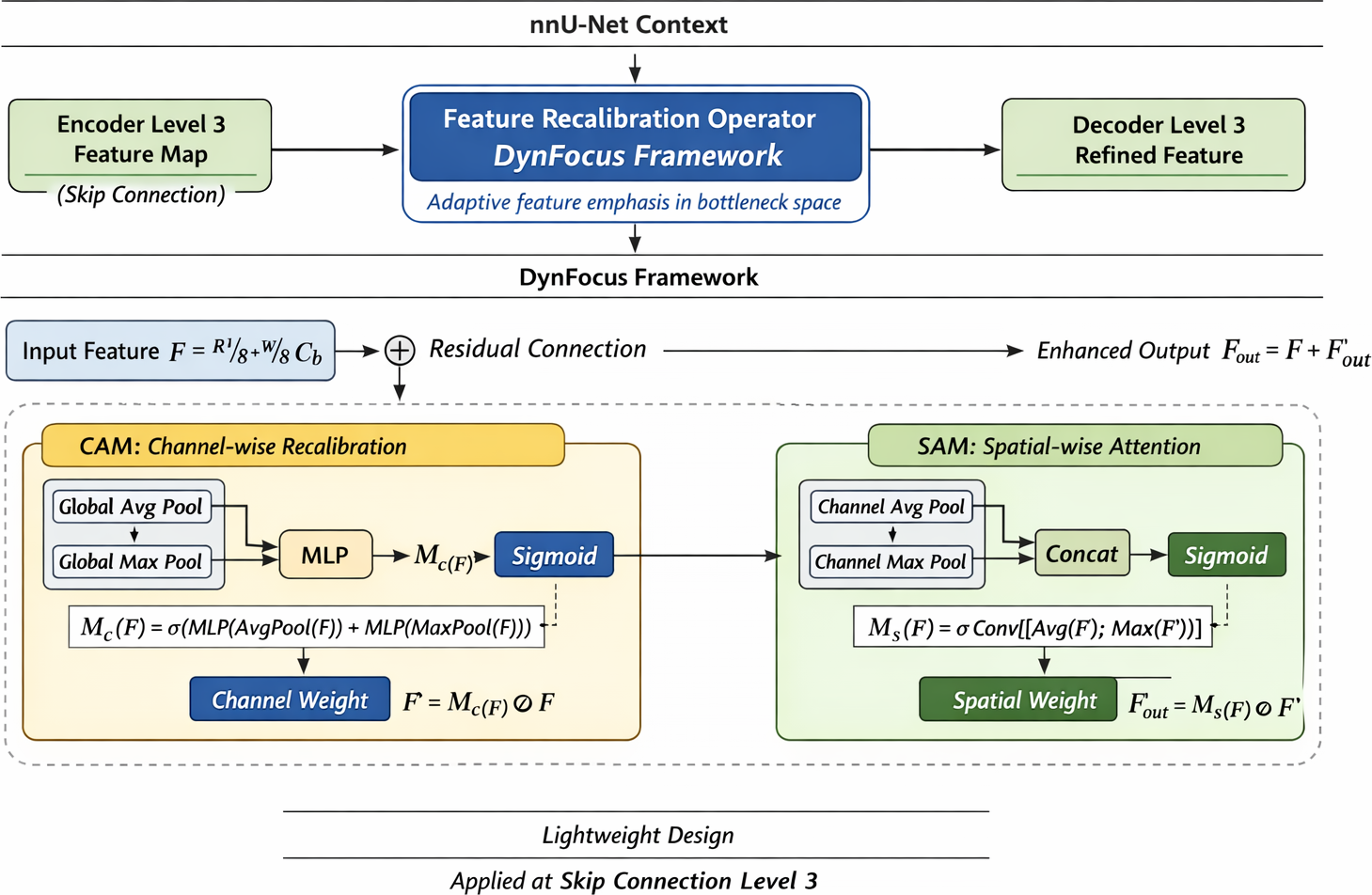

Detailed view of the three proposed modifications to the nnU-Net framework
